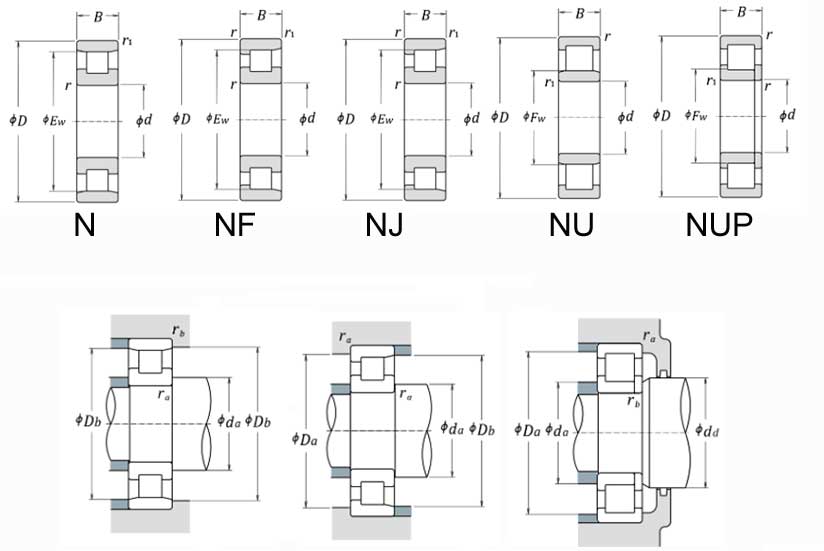

Boundary Dimensions
d
20
mm
Bore diameter
D
47
mm
Outside diameter
B
14
mm
Width
FW
26.5
mm
Raceway diameter of inner ring
r (min.)
1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
31500
N
Basic dynamic load rating
C0r
22600
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
16000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
19000
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
13000
min-1
Grease lubrication
Oil (Oil-bath)
16000
min-1
Oil-bath lubrication
Abutment and Fillet Dimensions
db (min.)
24
mm
Diameter of shaft / spacer sleeve abutment
db (max.)
25
mm
Diameter of shaft / spacer sleeve abutment
dd (min.)
32
mm
Diameter of shaft abutment
Da (max.)
42
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Mass
(approx.) 0.112 kg
