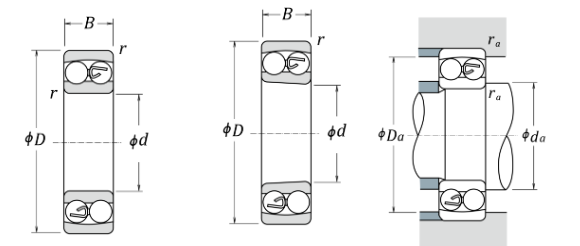

Boundary Dimensions
d
5
mm
Bore diameter
D
19
mm
Outside diameter
B
6
mm
Width
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
2790
N
Basic dynamic load rating
C0r
475
N
Basic static load rating
Speeds
Grease
30000
min-1
Grease lubrication
Oil (Oil-bath)
36000
min-1
Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.)
7
mm
Diameter of shaft abutment
Da (max.)
17
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Calculation factors
e
0.34
Constant
Y2
2.9
Axial load Factors
Y3
1.9
Axial load Factors
Y0
1.9
Axial load Factors
Mass
(approx.)
0.009
kg
