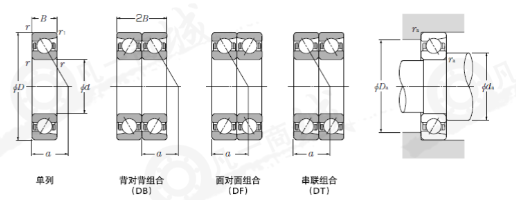

Boundary Dimensions
d
10
mm
Bore diameter
D
30
mm
Outside diameter
B
9
mm
Width
r (min.)
0.6
mm
Chamfer dimension
r1 (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
5500
N
Basic dynamic load rating
C0r
2500
N
Basic static load rating
Speeds
Grease
16000
min-1
Grease lubrication
Oil (Oil-bath)
22000
min-1
Oil-bath lubrication
Dimensions
a
12.9
mm
Effective load center
Abutment and Fillet Dimensions
da (min.)
15
mm
Diameter of shaft abutment
Da (max.)
25
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
Mass
(approx.)
0.032
kg
