NSK 22206H 22206HK bearing ZWZ

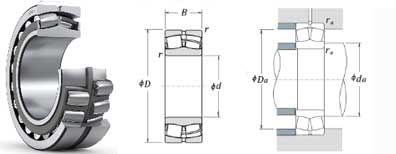

Boundary Dimensions
d 30 mm Bore diameter
D 62 mm Outside diameter
B 20 mm Width
r (min.) 1 mm Chamfer dimension
Basic Load Ratings
Cr 58500 N Basic dynamic load rating
C0r 61500 N Basic static load rating
Grease 6700 min-1 Grease lubrication
Oil (Oil-bath) 8500 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 36 mm Diameter of shaft abutment
da (max.) 37 mm Diameter of shaft abutment
Da (min.) 56 mm Diameter of housing abutment
Da (max.) 54 mm Diameter of housing abutment
ra (max.) 1 mm Radius of shaft or housing fillet
Calculation factors
e 0.33 Constant
Y2 3.1 Axial load Factors
Y3 2.1 Axial load Factors
Y0 2.0 Axial load Factors
Mass 0.25 kg
