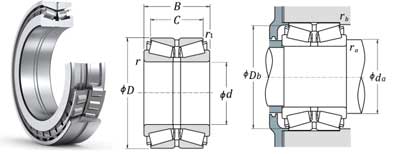

Boundary Dimensions
d 90 mm Bore diameter
D 160 mm Outside diameter
B2 74 mm Total width
C 61 mm Width of outer ring
r (min.) 2.5 mm Chamfer dimension
r1 (min.) 0.6 mm Chamfer dimension
Basic Load Ratings
Cr 425000 N Basic dynamic load rating
C0r 510000 N Basic static load rating
Speeds
Grease 1800 min-1 Grease lubrication
Oil (Oil-bath) 2400 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 105 mm Diameter of shaft abutment
rb (max.) 0.6 mm Radius of housing fillet of outer ring
Db (min.) 152 mm Minimum width of space required in housing on large side face
ra (max.) 2 mm Radius of shaft fillet of inner ring
Calculation factors
e 0.42 Constant
Y2 2.4 Axial load Factors
Y3 1.6 Axial load Factors
Y0 1.6 Axial load Factors
Mass
(approx.) 5.71 kg
HR90KBE42+L bearing
