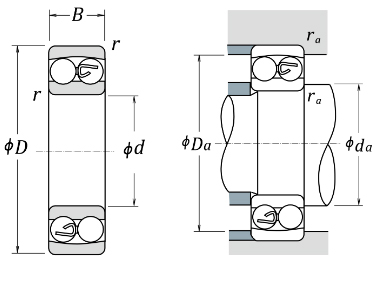

Boundary Dimensions
d
30
mm
Bore diameter
D
62
mm
Outside diameter
B
16
mm
Width
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
17300
N
Basic dynamic load rating
C0r
4650
N
Basic static load rating
Speeds
Grease
10000
min-1
Grease lubrication
Oil (Oil-bath)
12000
min-1
Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.)
35
mm
Diameter of shaft abutment
Da (max.)
57
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Calculation factors
e
0.25
Constant
Y2
3.9
Axial load Factors
Y3
2.5
Axial load Factors
Y0
2.6
Axial load Factors
Mass
(approx.)
0.22
kg
Associated products
Adapter H206X Adapter
