Dimensions
Bore diameter 300 mm
Outside diameter 460 mm
Width 180 mm

Product net weight 118 kg

Basic dynamic load rating 2 600 kN
Basic static load rating 5 500 kN
Reference speed 1 000 r/min

Limiting speed 1 500 r/min

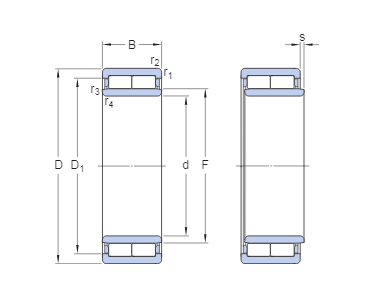

Dimensions
d
300 mm Bore diameter
D
460 mm Outside diameter
B
180 mm Overall bearing width
D1
≈407 mm Shoulder diameter outer ring
F
339 mm Raceway diameter inner ring
r1,2
min.4 mm Chamfer dimension outer ring
r3,4
min.4 mm Chamfer dimension inner ring
s
max.4.9 mm Permissible axial displacement from the normal position of one bearing ring relative to the other

<>SKF BC2B 320119
