Dimensions
Bore diameter 25 mm
Outside diameter 52 mm
Width 18 mm

Product net weight 0.172 kg

Basic dynamic load rating 39 kN
Basic static load rating 34 kN
Reference speed 15 000 r/min
Limiting speed 16 000 r/min
SKF performance classSKF Explorer


d
25 mm Bore diameter
D
52 mm Outside diameter
B
18 mm Width
d1
≈34.7 mm Shoulder diameter of inner ring
D1
≈43.3 mm Shoulder diameter of outer ring
F
31.5 mm Raceway diameter of inner ring
r1,2
min.1 mm Chamfer dimension
r3,4
min.0.6 mm Chamfer dimension of loose flange ring

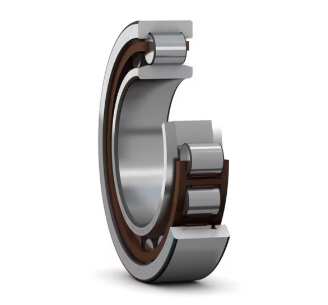

<>SKF NUP 2205 ECP
