Dimensions
Bore diameter 380 mm
Outside diameter 480 mm
Width 46 mm


Basic dynamic load rating539 kN
Basic static load rating1 060 kN
Reference speed1 300 r/min
Limiting speed1 300 r/min

d
380 mm Bore diameter
D
480 mm Outside diameter
B
46 mm Width
d1
≈414 mm Shoulder diameter of inner ring
D1
≈448 mm Shoulder diameter of outer ring
F
406 mm Raceway diameter of inner ring
r1,2
min.2.1 mm Chamfer dimension

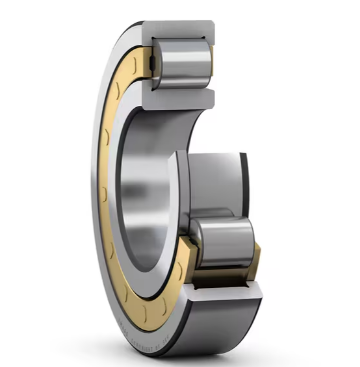

<>SKF NUP 1876 ECM
