weight :0.892 kg
Series      :      Medium Series
Bore Diameter      :      85 mm
Outside Diameter      :      130 mm
Number of Rows      :      1
Width      :      22 mm
Contact Angle      :      25 deg
Closure Type      :      Open
Load Capacity      :      63 kN
Cage Material      :      Fabric
Maximum Speed      :      9500 rpm Grease/15000 rpm Oil
Temperature Rating      :      -30 to 100 deg C

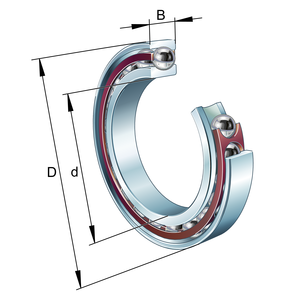

B7017EATP5UM FAG New Angular Contact Ball Bearing

<>FAG B7017 EA T P5 UM
