Product Description
Specifications:

Internal Clearance:-C0
Ball Screw Application:-Not for Ball Screws
Closure Type:-Double Sealed
Precision Rating:-ABEC 7 (ISO Class 4), ABEC 9 (ISO Class 2)
Operating Temperature Range:--30 to +100 °C
Radial Dynamic Load Capacity:-46.5 kN
Radial Static Load Capacity:-41.5 kN
Bearing Material:-Steel (Balls)
Maximum RPM:-18000 RPM
Cage Material:-Phenolic Resin
Finish/Coating:-Uncoated
Outer Ring Width:-20 mm
Fillet Radius:-1 mm
Series:-70
Brand FAG (Schaeffler)
Bearing Number B7014
Specification Met Ul
Bearing Type Ball Bearing
Manufacturer FAG (Schaeffler)

Internal Clearance:-C0
Ball Screw Application:-Not for Ball Screws
Closure Type:-Double Sealed
Precision Rating:-ABEC 7 (ISO Class 4), ABEC 9 (ISO Class 2)
Operating Temperature Range:--30 to +100 °C

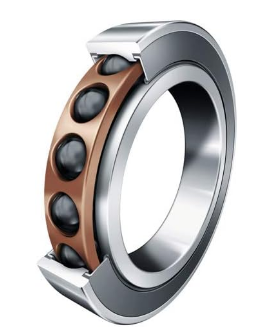

B7014-E-2RSD-T-P4S-DUL Spindle &a; Precision Machine Tool Angular Contact Bearing - 70 mm ID, 110 mm OD, 20 mm Width, 25 ° Contact, ABEC 7 (ISO Class 4)

<>FAG B7014-E-2RSD-T-P4S-DUL
