Product Description
Specifications:

Row Type &a; Fill Slot:-Double-Row Non-Fill Slot
Internal Clearance:-C0
Closure Type:-Open
Radial Dynamic Load Capacity:-122000 N
Radial Static Load Capacity:-98000 N
Operating Temperature Range:-Maximum of +120 °C
Cage Material:-Polyamide
Outer Ring Width:-54 mm
Maximum RPM:-5300 RPM
Finish/Coating:-Uncoated
Precision Rating:-Not Rated
Fillet Radius:-2.1 mm
Series:-3300
Standards Met:-DIN 628-3

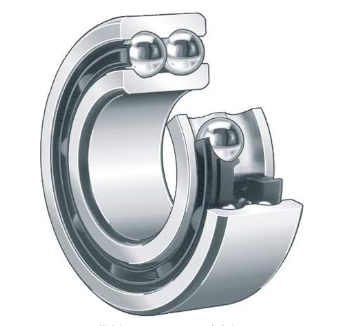

3312-B-TVH Double Row Angular Contact Bearing - 60 mm Bore, 130 mm OD, 54 mm Width, Open, 25 ° Contact Angle, C0

<>FAG 3312-B-TVH
