Product Description
Specifications:

Bore Type:-Straight
Closure Type:-Open
Internal Clearance:-C0
Operating Temperature Range:--30 to +150 C
Dynamic Load Capacity:-84000 N
Static Load Capacity:-34000 N
Precision Rating:-P0, ABEC 1 (ISO Class Normal)
Maximum RPM:-6000 RPM
Cage Material:-Brass
Finish/Coating:-Uncoated
Maximum Misalignment:-4
Outer Ring Width:-43 mm
Fillet Radius:-2.1 mm
Series:-22
Standards Met:-DIN 630
Weight:-9.02 lbs

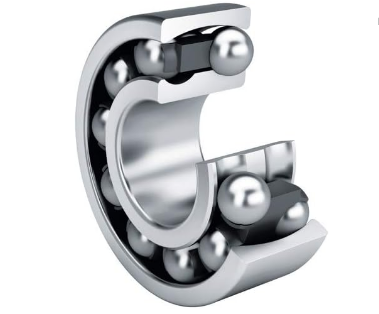

2219-M - Self-Aligning Ball Bearing - Straight Bore, 95 mm ID, 170 mm OD, 43 mm Width, Open, C0

<>2219-M
