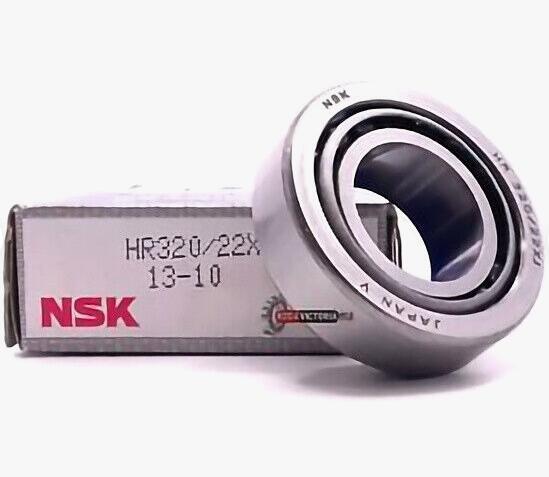

Tapered roller bearings HR320/22XJ

Bearing number : HR320/22XJ



Size (mm) : 22x44x15



Brand : NSK



Bore Diameter (mm) : 22



Outer Diameter (mm) : 44



Width (mm) : 15



Bearing dimensions and specification in NSK catalogue:



d - 22 mm



D - 44 mm



T - 15 mm



B - 15 mm



C - 11,5 mm



a - 11,1 mm



r min. - 0,6 mm



r1 min. - 0,6 mm



da min. - 30 mm



Da min - 37 mm



Da max. - 39 mm



db max. - 27 mm



Db min. - 42 mm



ra max. - 0,6 mm



rb max. - 0,6 mm



Weight - 0,103 Kg



Basic dynamic load rating (C) - 25,6 kN



Basic static load rating (C0) - 29,4 kN



(Grease) Lubrication Speed - 8500 r/min



(Oil) Lubrication Speed - 11000 r/min



Calculation factor (e) - 0,4



Calculation factor (Y0) - 0,83



Calculation factor (Y1) - 1,5



Tags :  NSK , 22x44x15
