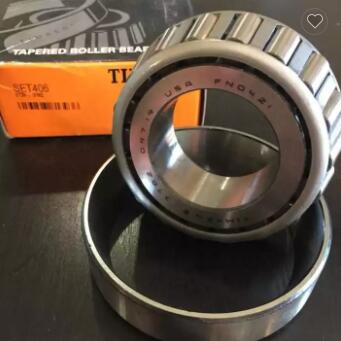

Timken SET406 3782 - 3720 Tapered Roller Bearings Specifications:



Series: 3700
Cone Part Number: 3782
Cup Part Number: 3720
Design Units: Imperical
Bearing Weight: 1.0Kg(2.1lb)
Cage type: Stamped Steel

3. Timken SET406 3782 - 3720 Tapered Roller Bearings Dimensions:
d - Bore: 44.450mm (1.75 in)
D - Cup Outer Diameter: 93.264mm (3.6718 in)
B - Cone Width: 30.302mm (1.1930 in)
C - Cup Width: 23.813mm (0.9375 in)
T - Bearing Width: 30.163mm (1.1875 in)


4. Timken SET406 3782 - 3720 Tapered Roller Bearings Abutment and Fillet Dimensions:

R - Cone Backface "To Clear" Radius1: 3.560 mm
0.14 in
r - Cup Backface "To Clear" Radius2: 3.3 mm
0.130 in
da - Cone Frontface Backing Diameter: 52.07mm
2.05 in
db - Cone Backface Backing Diameter: 57.91 mm
2.28 in
Da - Cup Frontface Backing Diameter: 87.9 mm
3.50 in
Db - Cup Backface Backing Diameter: 82.04 mm
3.23 in
Ab - Cage-Cone Frontface Clearance: 1.5 mm
0.06 in
Aa - Cage-Cone Backface Clearance: 3.8 mm
0.15 in
a - Effective Center Location3: 8.1 mm
0.32 in


5.  Timken SET406 3782 - 3720 Tapered Roller Bearings Basic Load Ratings:

C90 - Dynamic Radial Rating (90 million revolutions)4 7120 lbf
31700 N
C1 - Dynamic Radial Rating (1 million revolutions)5 27500 lbf
122000 N
C0 - Static Radial Rating 34300 lbf
153000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6 4120 lbf
18300 N
