Specifications



Series: 595
Cone Part Number: 594A
Cup Part Number: 592A
Design Units: Imperical
Bearing Weight: 2.5Kg(5.4lb)
Cage type: Stamped Steel

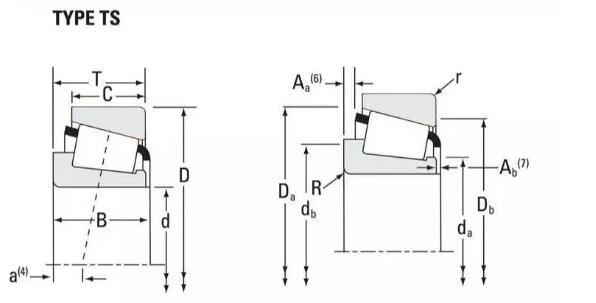

Dimensions


d - Bore: 95.2500mm (3.7500 in)
D - Cup Outer Diameter: 152.400 mm (6.0000 in)
B - Cone Width: 36.322 mm (1.4300 in)
C - Cup Width: 30.163mm (1.1875 in)
T - Bearing Width: 39.688mm (1.5625 in)


Abutment and Fillet


R - Cone Backface "To Clear" Radius1: 5.080 mm
0.2 in
r - Cup Backface "To Clear" Radius2: 3.3 mm
0.130 in
da - Cone Frontface Backing Diameter: 103.89 mm
4.76 in
db - Cone Backface Backing Diameter: 113.03 mm
4.45 in
Da - Cup Frontface Backing Diameter: 145.03 mm
5.71 in
Db - Cup Backface Backing Diameter: 134.87 mm
5.31 in
Ab - Cage-Cone Frontface Clearance: 2.3 mm
0.09 in
Aa - Cage-Cone Backface Clearance: 3.8 mm
0.15 in
a - Effective Center Location3: -2.5 mm
-0.1 in


Basic loade ratings


C90 - Dynamic Radial Rating (90 million revolutions)4 12600 lbf
56000 N
C1 - Dynamic Radial Rating (1 million revolutions)5 48600 lbf
216000 N
C0 - Static Radial Rating

71600 lbf
319000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6



9530 lbf
42400 N

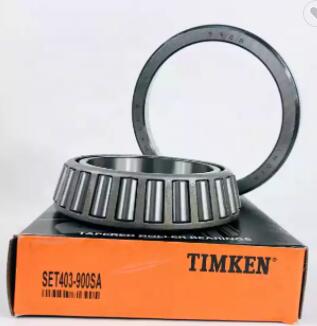

<>SET403 594A/592A Timken Tapered Roller Bearings Price
