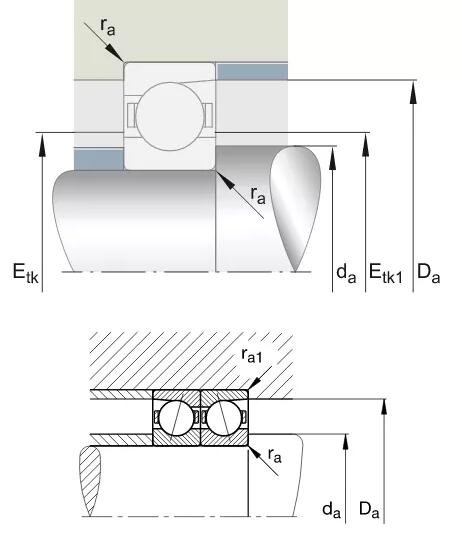

d 90  mm

D 140  mm

B 24  mm

a 27,4  mm
Da 131  mm Tolerance: H12
da 100  mm Tolerance: h12
Etk max 110,9  mm
Etk min 105,5  mm
Etk1 max 110,9  mm
Etk1 min 105,5  mm
r1 min 1,5  mm
ra max 1,5  mm
ra1 max 0,6  mm
rmin 1,5  mm
α 15  ° Contact angle
m 1,14  kg ≈ Mass

<>FAG B7018-E-T-P4S-UL Angular Contact Ball Bearing Spindle bearings
