Product details
Brand FAG Bearings
Material Alloy Steel
Item Dimensions LxWxH 6.69 x 2.24 x 10.24 inches
Item Weight 23.14 Pounds
Specification Met Iso

Bearing Type Ball Bearing

Cone (inner ring assembly) and cup (outer ring) combine to form a complete single tapered roller bearing
Supports high radial loads and axial loads in one direction between a rotating and non-rotating member
Operating temperatures range from -30 to 120 degrees C (-22 to 250 degrees F)
Sheet steel cage evenly spaces rollers for reduced friction, vibration, and noise
Open configuration for lubrication applied in place
Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 170 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease

Inside Diameter 170 millimeters
Item Diameter 260 millimeters
Item Weight 23.1 pounds
Material Alloy Steel
Maximum Rotational Speed 2400 rpm
Measurement System Metric
Model Number 32034-X
Number of Items 1
Part Number 32034-X
Specification Met Iso
Tolerance Held Standard Tolerance

, Standard Tolerance, Metric, 170 mm ID, 260mm OD, 57mm Width, 2400rpm Maximum Rotational Speed

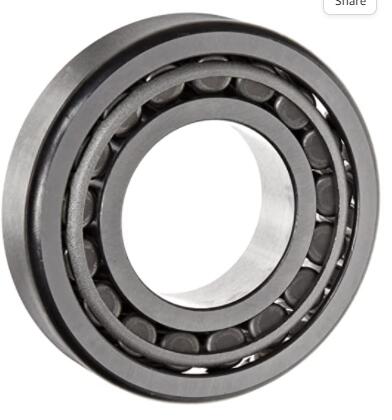

<>FAG 32034X bearing Tapered Roller Bearing Cone and Cup Set
