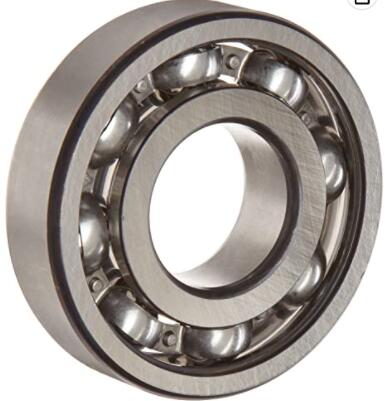

FAG 6309-C3 Deep Groove Ball Bearing, Single Row, Open, Steel Cage, C3 Clearance, Metric, 45mm ID, 100mm OD, 25mm Width, 16000 rpm Maximum Rotational Speed, 7100 lbf Static Load Capacity, 1200 lbf Dynamic Load Capacity

Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 45 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 7100 pounds

Inside Diameter 45 millimeters
Item Diameter 100 millimeters
Material Alloy Steel
Maximum Rotational Speed 16000 rpm
Measurement System Metric
Model Number 6309.2RSR.C3
Number of Items 1
Part Number 6309-C3
Specification Met Din 623-1 , Din 620-4 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 1200 pounds
UNSPSC Code 31171500
Width 25 millimeters
