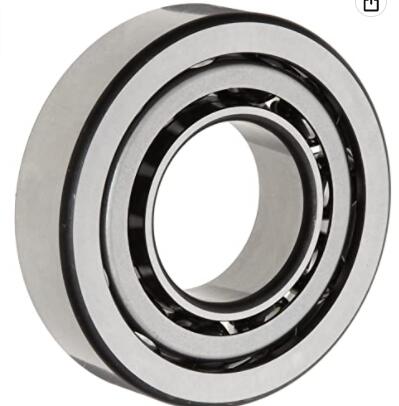

FAG 7309B-TVP-UA Angular Contact Ball Bearing, Single Row, Open, 40° Contact Angle, Polyamide/Nylon Cage, Normal Clearance, Metric, 45mm ID, 100mm OD, 25mm Width, 7500rpm Maximum Rotational Speed, 9000lbf Static Load Capacity, 13400lbf Dynamic Load Capacity,

Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 45 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 13400 pounds

Inside Diameter 45 millimeters
Item Diameter 100 millimeters
Item Weight 1.85 pounds
Material Nylon
Maximum Rotational Speed 7500 rpm
Measurement System Metric
Model Number 7309BTVPUA
Number of Items 1
Part Number 7309-B-TVP-UA
Specification Met Din 623-1 , Iso 281 , Iso 683-17 , Iso 199 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 9000 pounds

Width 25 millimeters

<>FAG 7309B-TVP-UA Angular Contact Ball Bearing
