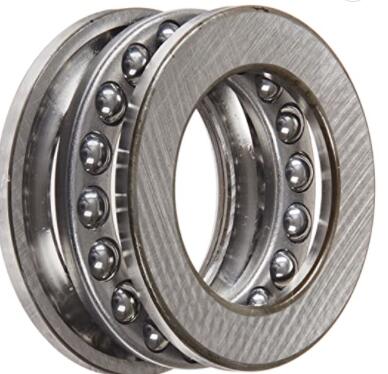

FAG 51106 Grooved Race Thrust Bearing, Single Row, Open, 90° Contact Angle, Steel Cage, Metric, 30mm ID, 47mm OD, 11mm Width, 5600rpm Maximum Rotational Speed, 7500lbf Static Load Capacity, 3750lbf Dynamic Load Capacity

Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 30 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 3750 pounds

Inside Diameter 30 millimeters
Item Diameter 47 millimeters
Item Weight 2.40 ounces
Material Alloy Steel
Maximum Rotational Speed 5600 rpm
Measurement System Metric
Model Number FAG 51106
Number of Items 1
Part Number 51106
Specification Met DIN 623-1 , ISO 281 , ISO 683-17 , ISO 199 , DIN ISO 281 , EN 10139 , ISO 104 , SAE J403
Static Load Capacity 7500 pounds

Width 11 millimeters
