Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 50 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 5220 pounds

Item Diameter 90 millimeters
Item Weight 1.00 pounds
Material Steel Cage
Maximum Rotational Speed 8500 rpm
Measurement System Metric
Number of Items 1
Part Number 6210-C3
Specification Met Din 623-1 , Din 620-4 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 7890 pounds

Width 20 millimeters

, Open, Steel Cage, C3 Clearance, Metric, Metric, 50mm ID, 90mm OD, 20mm Width, 18000rpm Maximum Rotational Speed, 5220lbf Static Load Capacity, 7890lbf Dynamic Load Capacity

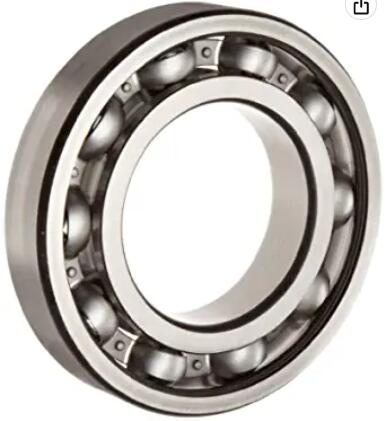

<>FAG 6210-C3 Deep Groove Ball Bearing, Single Row
