C3 Clearance, Metric, 70mm ID, 150mm OD, 35mm Width, 10000 rpm Maximum Rotational Speed, 15300 lbf Static Load Capacity, 23600 lbf Dynamic Load Capacity


Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 70 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 15300 pounds
Ean 4012801077651
Global Trade Identification Number 04012801077651
Included Components bearingsandbushings
Item Diameter 150 millimeters
Item Weight 5.56 pounds
Material Steel Cage
Maximum Rotational Speed 10000 rpm
Measurement System Metric
Model Number 6314-C3
Number of Items 1
Part Number 6314-C3
Specification Met Din 623-1 , Din 620-4 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 23600 pounds
UNSPSC Code 31171500
Width 35 millimeters

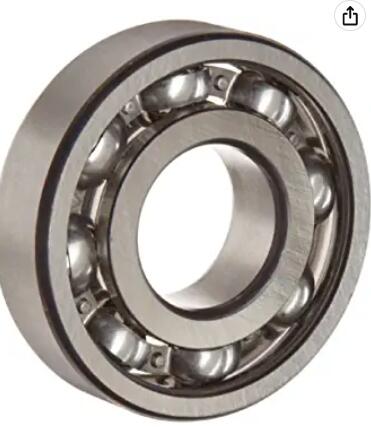

<>FAG 6314-C3 Deep Groove Ball Bearing, Single Row, Open, Steel Cage,
