Brand FAG Bearings

Material Alloy Steel
Item Dimensions LxWxH 14.8 x 7.27 x 4.74 inches
Item Weight 0.01 Pounds
Specification Met Iso
About this item
Cone (inner ring assembly) and cup (outer ring) combine to form a complete single tapered roller bearing
Supports high radial loads and axial loads in one direction between a rotating and non-rotating member
Operating temperatures range from -30 to 120 degrees C (-22 to 250 degrees F)
Sheet steel cage evenly spaces rollers for reduced friction, vibration, and noise
Open configuration for lubrication applied in place
Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 100 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Inside Diameter 100 millimeters
Item Diameter 150 millimeters
Item Weight 0.160 ounces
Material Alloy Steel
Maximum Rotational Speed 4500 rpm
Measurement System Metric
Model Number 32020-X
Number of Items 1
Part Number 32020-X
Specification Met Iso
Tolerance Held Standard Tolerance

Width 32 millimeters

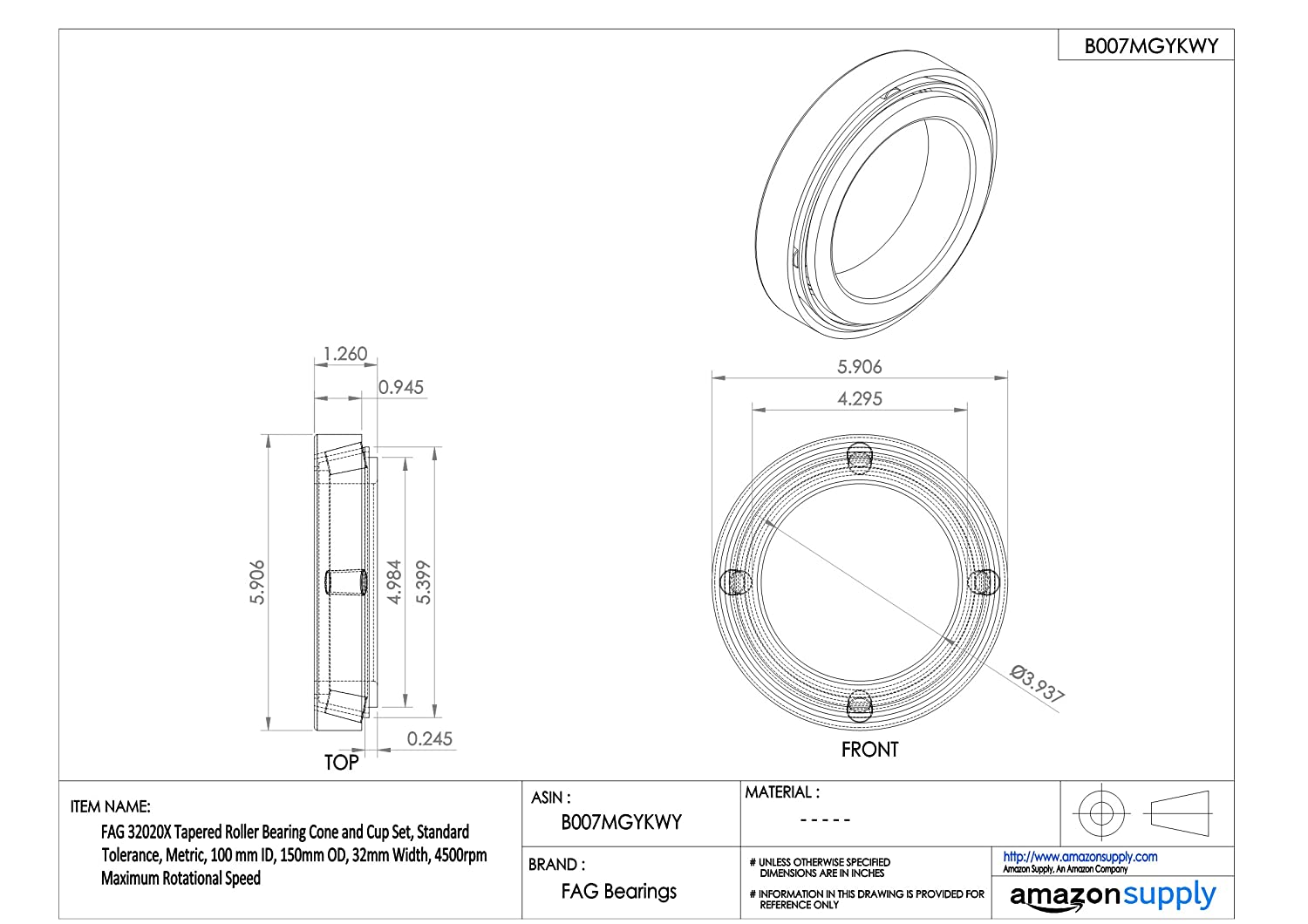

Tapered Roller Bearing Cone and Cup Set, Standard Tolerance, Metric, 100 mm ID, 150mm OD, 32mm Width, 4500rpm Maximum Rotational Speed
